Goodman Filtration

Goodman Filtration

Air filtration systems combat indoor air pollution by removing airborne particulates ranging in size down to 0.3 micron and keep them from recirculating back into your home’s air.

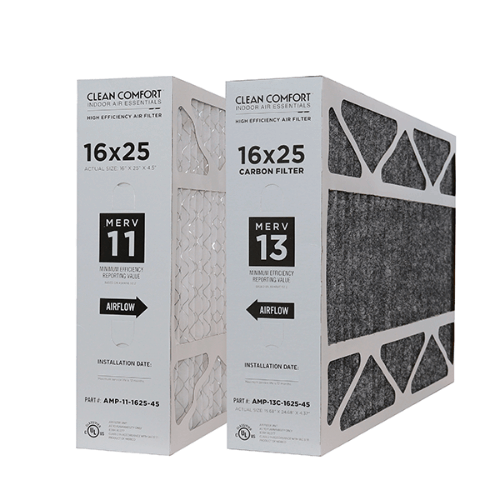

AMP Replacement Filters

MERV 11 and MERV 13 w/carbon replacement filters for CleanFit and Builder model.

Features

• Filter frame designed with dual pull tabs for easy removal
• High efficiency electrostatic, polypropylene filter media
• 12 pleats per foot
• 2 piece frame construction
• 24pt wet strength paperboard
• Low pressure drop
• High dust holding capacity
• AMP-11: Standard MERV 11 direct replacement filter
• AMP-13C: Upgraded MERV 13 co-pleated with carbon pre-filter

AM11-CleanFit

Air handler and furnace direct fit, low restriction MERV 11 media air cleaners.

Features

• Includes MERV 11 media filter, rated at 492 feet/minute, removes airborne particles down to 0.3 micron
• Filter design features a structured density gradient for sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers
• Extra deep, 4 1/2 inch pleated filter
• Filter has a tight cabinet fit ensuring minimal air bypass
• Quick and easy filter change
• Dual gasketed door for proper air seal
• Filter frame designed with dual pull tabs for easy removal
• Heavy duty, 20 gauge, pre-painted, corrosion resistant cabinet and door
• Reversible air flow – Horizontal or Vertical

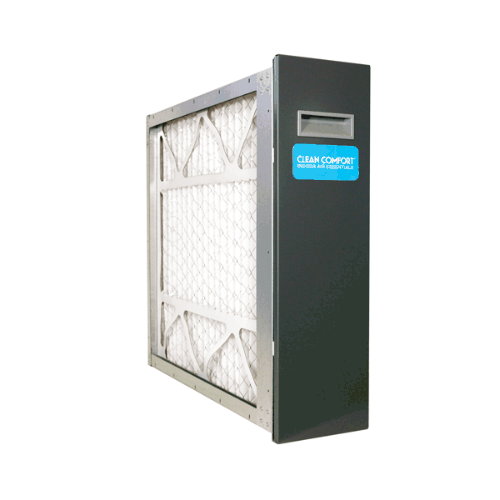

AMB11-Builder

Cost effective MERV 11 media air cleaners designed for the new construction market.

Features

• Includes MERV 11 media filter, rated at 492 feet/minute, removes airborne particles down to 0.3 micron
• Filter design features a structured density gradient for sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers
• Extra deep, 4 1/2 inch pleated filter
• Filter has a tight cabinet fit ensuring minimal air bypass
• Quick and easy filter change
• Dual gasketed door for proper air seal
• Filter frame designed with dual pull tabs for easy removal
• Heavy duty, 20 gauge, pre-painted, corrosion resistant cabinet and door
• Reversible air flow – Horizontal or Vertical

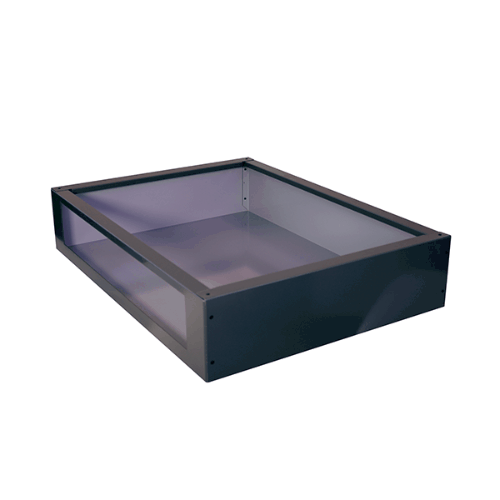

AMP-BSRB

Provides bottom and side return w/ AM(B)11 for 4- and 5-ton drive furnace applications.

Features

• Intuitively designed with outer dimensions that match the furnace to lift the unit off the floor and allow for increased air flow in a vertical installation by allowing bottom cabinet return air as well as side return air
• When installed with a Clean Comfort CleanFit™ media air cleaner, these bases expand filtered airflow
• Solid one-piece wrapped cabinet made from 20 gauge steel for support and durability
• Painted finish that compliments the equipment providing a professional installation

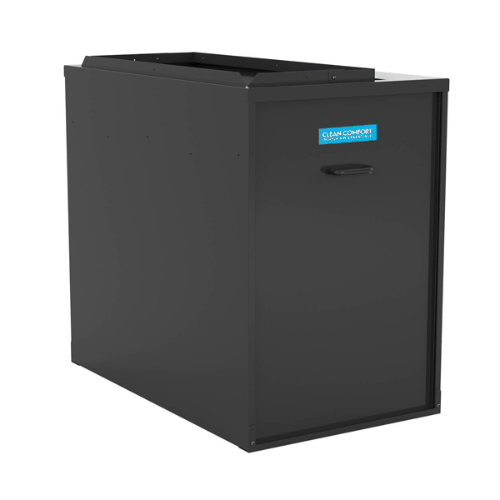

AM11-5RA

Right-angle unit provides deep-pleated filtration through side return.

Features

• Adjustable inlet duct opening replaces need for field forming transition, significantly reducing installation time
• Reversible air flow. Two access doors allow versatile installation and easy maintenance
• Includes MERV 11 media filter, rated at 492 feet/minute, removes airborne contaminants down to 0.3 micron
• Unique filter design features a structured density gradient with an electret charge for higher initial and sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers that will not shred or absorb moisture
• Extra deep, 5¼ inch pleated filter with long filter life and low static pressure. Filter lasts up to one year in standard applications
• Perfect-fit filter has an exact fit with the cabinet ensuring no air bypass so all air in the return duct is treated
• Pre-assembled filter frame is made of strong beverage board

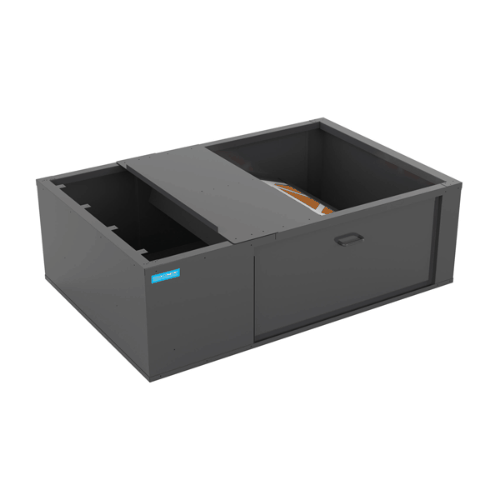

AM11-5PP

Platform provides deep-pleated bottom return with unit/duct support.

Features

• Includes MERV 11 media filter, rated at 492 feet/ minute, removes airborne contaminants down to 0.3 micron
• Unique filter design features a structured density gradient with an electret charge for higher initial and sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers that will not shred or absorb moisture
• Extra deep, 5¼ inch pleated filter with long filter life and low static pressure. Filter lasts up to one year in standard applications
• Perfect-fit filter has an exact fit with the cabinet ensuring no air bypass so all air in the return duct is treated
• Pre-assembled filter frame is made of strong beverage board. Quick and easy to change filter when needed
• Heavy-gauge, galvanized-steel cabinet and powdercoat paint finish resist corrosion and provide trouble-free installation
• Maintenance-free except for filter replacement

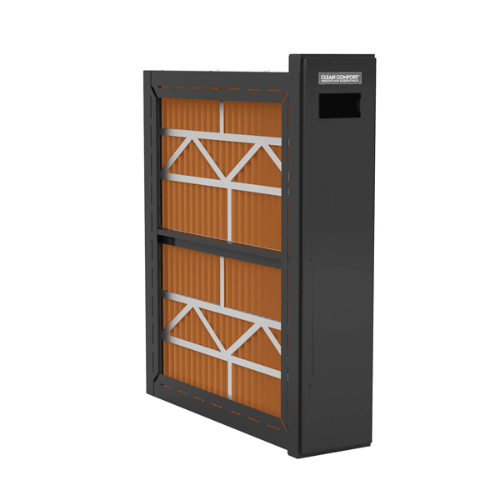

AM11-3225-5

Double stack unit provides more airflow in duct for larger systems.

Features

• Includes MERV 11 media filter, rated at 492 feet/ minute, removes airborne contaminants down to 0.3 micron
• Unique filter design features a structured density gradient with an electret charge for higher initial and sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers that will not shred or absorb moisture
• Includes tow (2) extra deep, 5¼ inch pleated filter with long filter life and low static pressure. Filter lasts up to one year in standard applications
• Perfect-fit filter has an exact fit with the cabinet ensuring no air bypass so all air in the return duct is treated
• Pre-assembled filter frame is made of strong beverage board. Quick and easy to change filter when needed
• Heavy-gauge, galvanized-steel cabinet and powdercoat paint finish resist corrosion and provide trouble-free installation
• Maintenance-free except for filter replacement

AM11-3225-5

Double stack unit provides more airflow in duct for larger systems.

Features

• Includes MERV 11 media filter, rated at 492 feet/ minute, removes airborne contaminants down to 0.3 micron
• Unique filter design features a structured density gradient with an electret charge for higher initial and sustained efficiency over the life of the filter
• Filter material is constructed of cellulose-free, hydrophobic polyolefin fibers that will not shred or absorb moisture
• Includes tow (2) extra deep, 5¼ inch pleated filter with long filter life and low static pressure. Filter lasts up to one year in standard applications
• Perfect-fit filter has an exact fit with the cabinet ensuring no air bypass so all air in the return duct is treated
• Pre-assembled filter frame is made of strong beverage board. Quick and easy to change filter when needed
• Heavy-gauge, galvanized-steel cabinet and powdercoat paint finish resist corrosion and provide trouble-free installation
• Maintenance-free except for filter replacement

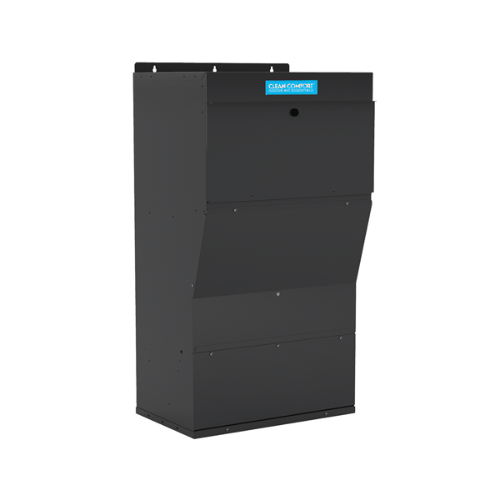

AMHP-250-UPD

The AMHP-250 Air Cleaner is the most advanced air treatment system in the Clean Comfort® brand family of products.

Features

• Carbon Prefilter extends the life of the HEPA filter by removing lint, hair and larger particles from the home’s air
• Long-life, 99.97% HEPA media filter helps remove airborne particles 0.3 micron (1/84,000 of an inch) and larger
• Two UVC germicidal lamps are enclosed in a reflecting chamber which intensifies the UVC rays
• CinQuartz® photocatalytic oxidation (PCO) filter has a very high surface exchange capability. Because of the PCO filter’s structure, the unit’s UVC light penetrates the thickness of the filter material allowing decomposition of any airborne chemicals throughout the entire CinQuartz filter instead of just on the surface
• Carbon/Potassium Permanganate final filter removes trace Volatile Organic Compounds (VOC’s) and light gases that are too small to be caught with the HEPA filter or the PCO filter
• Powerful European motor delivers up to 250 CFM of pure air

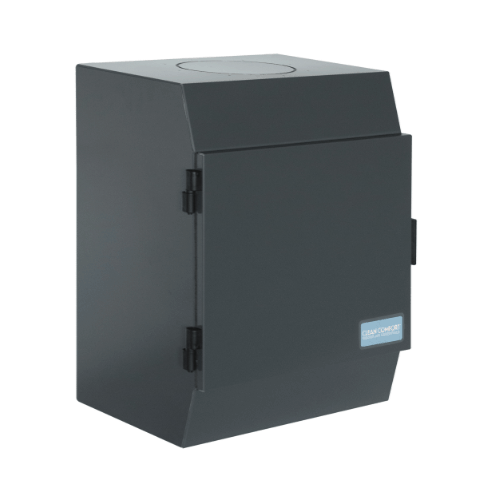

AMHP-300

AMHP-300-GT Duct Mount HEPA bypass air cleaner uses True HEPA media material that is certified to remove 99.97% of all particles as small as 0.3 microns (1/84,000 of an inch) from a home’s air.

Features

• The MERV 8 prefilter with activated carbon helps remove lint to prolong the life of HEPA filter and unpleasant odors, such as those from cooking, smoking, painting or other household activities
• Since the AMHP-300-GT is installed in a bypass configuration, it does not add static pressure to the HVAC system
• Versatile installation: duct mounted or collar mounted with pre-punched knockouts
• Plug-in power cord (120 VAC); no field wiring required
• Limited 5 year warranty

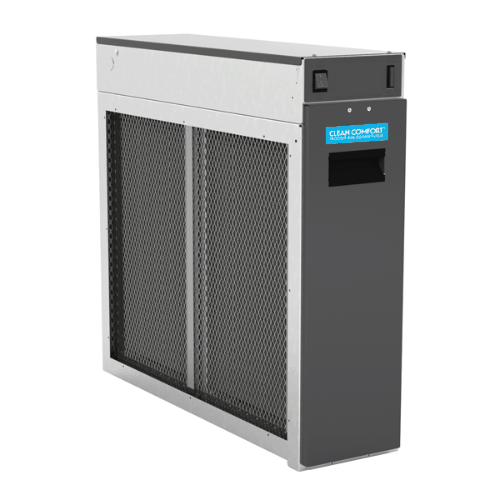

AE14

The Clean Comfort® brand AE14 Series Electronic Air Cleaner is a four-stage filtration system that powerfully attracts and traps airborne particles.

Features

• Two aluminum mesh pre-filters help prevent lint and large particles from entering the collecting cells
• Heavy-gauge aluminum collecting cells are durable and easy to maintain
• Cell guides ensure proper placement of collecting cells in cabinet
• Activated carbon filters help remove unpleasant odors
• Installer-adjustable voltage output to collecting cells for conditions of extreme dryness, humidity or proximity to hydro towers
• Electronic air-proving switch automatically cycles air cleaner on/off with the system fan
• Power Switch (orange) indicates when the air cleaner is powered
• Performance indicator light (green) indicates when the air cleaner is operating
• Heavy gauge galvanized steel cabinet
• Can be installed in either vertical or horizontal position
• Durable powder coat paint finish on door and top lid resists corrosion

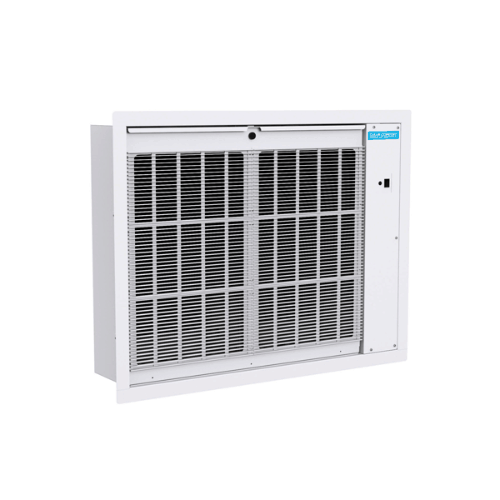

AE14-G

The Clean Comfort^® brand AE14-G Series Electronic Air Cleaner is a four-stage filtration system installed on the wall or ceiling that powerfully attracts and traps airborne.

Features

• Aluminum mesh prefilters (2) prevent lint and large particles from entering collecting cells
• Heavy-gauge aluminum collecting cells (2)
• Plastic intake grille is easy to wipe clean
• Hinged, swing-out door
• Automatic interlock switch disconnects power when unit is opened
• Electronic air-proving switch (APS)
• Automatically cycles air cleaner on/off with the system fan
• Performance indicator light (green LED) indicates high voltage to the collecting cells, ensuring air cleaner is operating properly at a glance
• Solid-state power board is equipped with a variable resistor (potentiometer) to adjust high voltage output
• Equipped with a variable resistor (potentiometer) to adjust high voltage output
